HQ0067-000

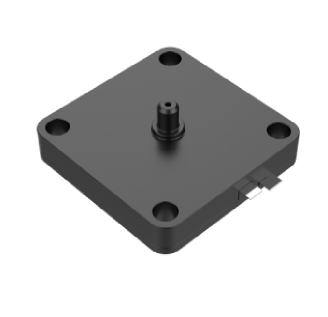

Piezoelectric Pump

The Piezoelectric Pump uses converse piezoelectric effect to transform electric signals into mechanical deformation of piezoelectric ceramic. This causes rapid change of gas volume in an enclosed space, which generates high-pressure, high-speed stable air flow through a tiny vent.
Request a sample
Features

- Small and lightweight

- Adjustable driving voltage for the regulation of air pressure and air flow in accordance with actual work requirement

- Concentrated air flow


Dimensions
Specifications

ItemSpecifications
Resonant frequency24±2 KHz
Resonant impedance ≤200 Ω
Static capacitance14±20% nF
Operating voltage10~20 Vp-p
Max. allowable working voltage30 Vp-p
Static pressure≥ 1.0 kPa
Flow rate
≥ 0.3 L/min
Operating Temperature+5℃~+50℃
