US0012

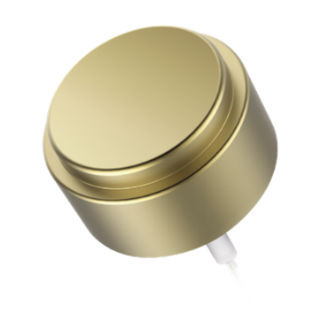

Ultrasonic Flow Transducer

Ultrasonic flow sensor is used as the core element of ultrasonic flow meters. Ultrasonic flow measurement uses the transit time principle, whereby opposite sending and receiving ultrasonic flow sensors are used to transmit signals through the flow. The signal travels faster when moving with the flow stream rather than against the flow stream. The difference between the two transit times is used to calculate the flow rate.
Request a sample
Features

- High sensitivity, stability and reliability

- High and low temperature resistance, moisture resistance, impact and shock resistance.

- Good consistency.

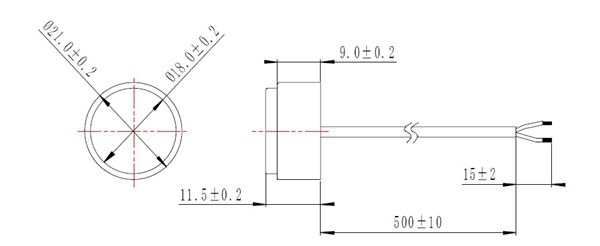

Dimensions
US0012 ultrasonic flow sensor.jpg
Specifications

ItemSpecifications
Resonant frequency975±30 KHz
Resonant impedance≤110 Ω
Static capacitance1150±20%pF
Pressure Resistance3.5Mpa
