FS0002

Flow Sensor Module

The Ultrasonic Flow Sensor Module measures the flow rate of liquid by calculating the transit time difference of upstream and downstream ultrasonic pulses. It contains no moving part in the pipe section, and therefore has lower pressure loss and higher accuracy than traditional flow meters.
Request a sample
Features

- Measuring pipe made of molded engineering plastic to ensure high ruggedness and reliability

- Up to 2% accuracy and immunity to environment impact

- Turndown ratio up to 160

- Approved for drinking water

- Digital output with M-BUS serial communication

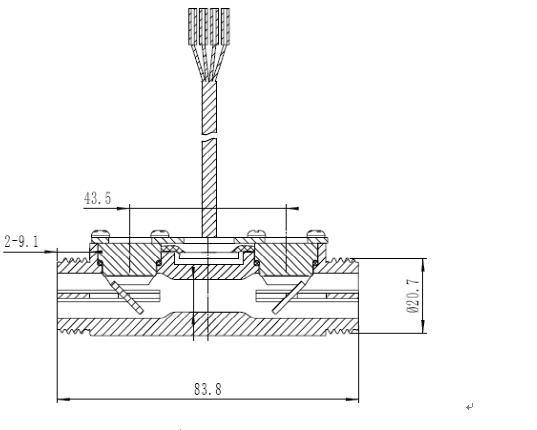

Dimensions
fs0002 ultrsonic flow sensor AUDIOWELL.jpg
Specifications

ItemSpecifications
DiameterDN 10
Flow Range1.5-1600 L/h
Accuracy

25~35°C: ≤±2%

Others: ≤±3%

Max. Operating Pressure1.6 MPa
Protocol
M-BUS
Power Supply
3.1-3.7 V
Operating Temperature0.1°C~+50°C
Operating Life≥6years

Applications

- Water management for house

- Smart water management system

- Smart irrigation system

- Water metering for industrial equipment
