Current position : Home > Products > Sensors > Ultrasonic Flow Transducer
Cate
US0097

Ultrasonic Flow Transducer

The 2MHz ultasonic flow sensor, compared with similar competitive products on the market, this product has a more stable electrical performance and stronger pressure resistance. At the same time, it has the characteristics of high sensitivity, fast reaching the peak value and easier signal processing, which helps to improve the measurement accuracy of ultrasonic water meters, and provides a more competitive hardware basis for the iterative upgrade of the ultrasonic intelligent water meter.
Request a sample
Features

- High sensitivity, fast reaching the peak value and easier signal processing.

- The electrical performance is highly stable at high and low temperature with zero flow drift.

- The max. withstand water pressure can reach 4.8 MPa with strong reliability.

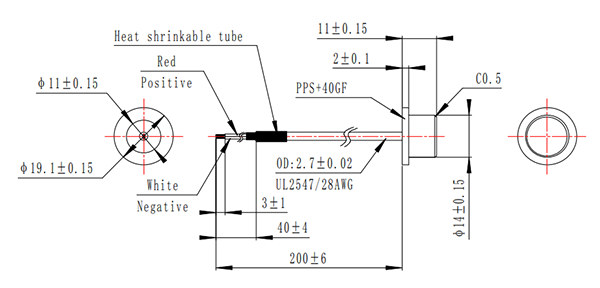

Dimensions(mm)
Specifications

ItemSpecifications
Resonant frequency2110±30 KHz
 Resonance Impedance50±40Ω
Z(2MHz) Resonance Impedance130±100Ω
Free Capacitance1000±20%pF
Receiving Signal
500±100mV
Waterproof GradeIP68
Max. working water pressure1.6Mpa
Operating temperature0~+90℃

Applications
