Amidst the rapid advancement of intelligent sensing technologies, cameras have become a "standard feature" across numerous scenarios due to their powerful imaging capabilities. However, in critical domains demanding extreme privacy protection, harsh environmental adaptability, and cost-efficiency balance, traditional optical sensing approaches face insurmountable barriers. Piezoelectric Micromachined Ultrasonic Transducer (PMUT) sensor technology, leveraging its unique physical mechanisms and application value, is emerging as the key to unlocking next-generation ubiquitous and reliable intelligent perception. It demonstrates irreplaceable advantages, particularly in privacy-sensitive or environmentally challenging scenarios.
PMUT Sensors: The "Guardian" of Privacy Security
The core value of PMUT sensors lies in their non-optical sensing nature. They capture zero visual information, relying solely on ultrasound transmission and reception to detect distance and presence. This fundamentally eliminates privacy leakage risks associated with cameras, making PMUT sensors ideal for environments with stringent privacy requirements—such as medical monitoring spaces, private changing areas, high-security facilities, and sensitive zones in smart homes—laying a foundation of trust for "unobtrusive" intelligent interaction.
PMUT Sensors: The "Innovator" in Cost and Power Efficiency
Manufactured using mature MEMS fabrication processes, PMUT sensors feature intricate micro-mechanical structures that enable large-scale, low-cost integration. Multiple miniaturized dimensions have achieved stable mass production, including:

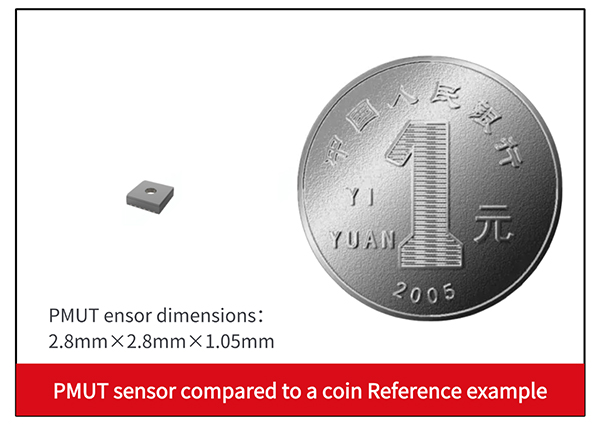

2.8 mm × 2.8 mm × 1.05 mm
4.2 mm × 4.0 mm × 1.4 mm
5.4 mm × 5.8 mm × 1.4 mm
Thanks to their compact design and relatively simple driving/signal-processing circuits, PMUT sensors consume significantly less power than solutions like LiDAR (Light Detection and Ranging), extending battery life for IoT terminals and wearable devices.
PMUT Sensors: The Benchmark for Environmental Robustness
Compared to cameras (light-dependent) and LiDAR (environmentally vulnerable), PMUT sensors with 180° wide-angle coverage exhibit exceptional environmental resilience:
Impervious to Darkness and Glare:
Performance remains consistent in total darkness, direct intense sunlight, or complex lighting, overcoming optical sensors’ failure in extreme illumination.
Penetrates Smoke, Dust, and Mist:
Strong ultrasound penetration ensures reliable perception in smoke-, dust-, or fog-laden environments, providing robust support for industrial monitoring, fire rescue, and outdoor equipment.
PMUT Sensors: The "Impartial Detector" of Distance and Presence
PMUT sensors deliver precise distance data with rapid response. Crucially, their detection sensitivity remains highly consistent across materials. Whether targeting transparent glass, dark light-absorbing surfaces, reflective metal, or porous fabric, ultrasound reflects effectively. This circumvents cameras’ struggles with transparent objects and LiDAR’s performance degradation on absorptive materials (e.g., black velvet), achieving "Material-Agnostic Perception" for ranging and presence detection.
As global privacy regulations tighten and demands for robustness, reliability, and cost-effectiveness of smart devices in complex environments intensify, the strategic value of PMUT sensor technology accelerates. It is poised to become a critical core component driving next-generation intelligent human-machine interaction, environmental sensing, and automated systems—establishing a solid perceptual foundation for sustainable intelligent development.
