Every year, tens of billions of tonnes of water are lost from global water supply networks due to inaccurate metering, meter failures, and pipeline leakage. This not only causes severe water resource waste but also significantly reduces water utilities’ revenue and hinders the progress of smart water infrastructure development. The industry urgently needs a fundamental upgrade of its underlying metering technology.
AUDIOWELL with deep expertise in the fluid measurement field, directly addresses these critical metering challenges by launching its ultrasonic flow measurement tube section (flow meter body), which is calibrated through full-scale real-flow testing and optimized via computational fluid dynamics. The product contains no moving parts internally, achieves a basic metering accuracy of Class 1, and is manufactured from materials that have passed multiple authoritative drinking water safety certifications in various countries. With nominal diameters ranging from DN15 to DN25, available in either plastic or brass body materials, it provides global water meter and heat meter manufacturers with a highly reliable, long-life, and customizable ultrasonic metering core component.
Three Core Pain Points of Traditional Metering Solutions That Constrain Smart Water Deployment
Mechanical water meters, which are currently widely used, along with some electromagnetic metering devices, have revealed unavoidable shortcomings during long-term pipeline operation:
Mechanical wear continuously degrades metering accuracy

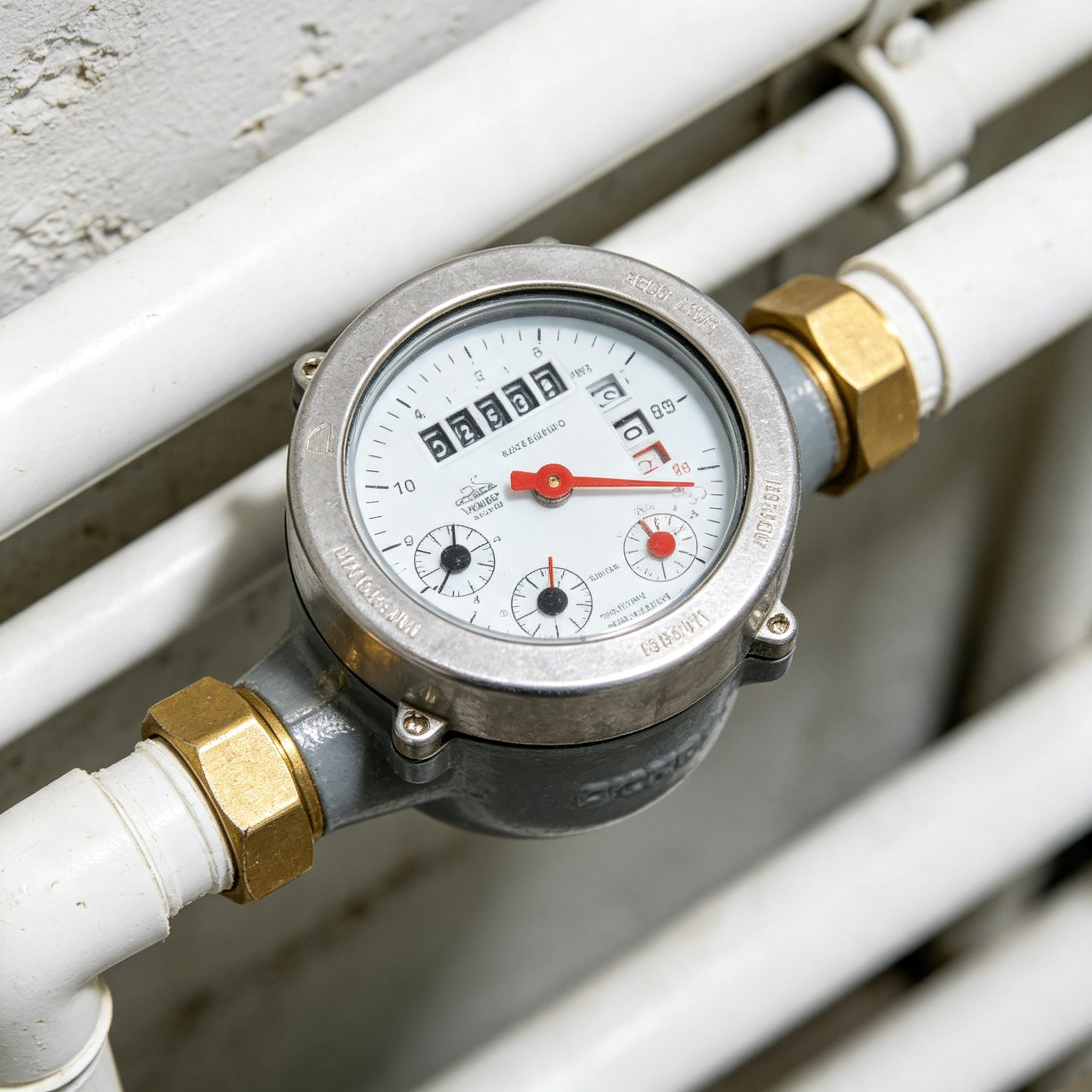

Mechanical water meters rely on moving components such as impellers and gears to measure flow. Sediment and scale in the water can easily cause jamming, fouling, and wear of these parts. Measurement errors in low-flow conditions progressively worsen, and accuracy drifts significantly over extended use, leading to frequent metering disputes.
High maintenance costs and high on-site failure rates
The mechanical mechanisms are prone to fouling and failure, requiring utilities to regularly send personnel for on-site cleaning, calibration, and cartridge replacement. The cumulative costs of labor, materials, and service interruptions drive up long-term operational expenses.
Weak digital capabilities, unable to support intelligent pipeline networks
Traditional meters can only output simple pulse signals and are incapable of collecting high-frequency, bidirectional, or multi-dimensional fluid data. They cannot meet the data requirements of digital water applications such as DMA district metering, real-time leak early warning, and water demand forecasting.
At their root, most traditional products treat metering only as an auxiliary function, neglecting that the measurement tube section is the core metering carrier of the entire flow device, and lacking integrated systematic acoustic and fluid design. In contrast, AUDIOWELL’s ultrasonic flow meter body achieves full-stack in-house R&D across mechanics, electronics, acoustics, materials, and algorithms, fundamentally solving the industry’s metering problems from the ground up.
AUDIOWELL’s Ultrasonic Flow Meter Body: Full-Stack Self-Development, All-Round Stable Metering
I. Self-Developed Acoustic Core + Optimized Flow Channel, Unaffected by Impurities and Low-Flow Interference
Fully in-house ultrasonic transducers
From piezoelectric ceramic material formulation, high-temperature sintering of components, packaging processes, to acoustic impedance matching, everything is independently manufactured in-house. This eliminates performance variability from purchased components and ensures consistent sensitivity, batch-to-batch uniformity, and stable output over decades.
CFD-optimized flow field structure
The tube body structure and acoustic path are co-designed to effectively mitigate measurement interference from bubbles, turbulence, and flow field distortions. The full-bore, obstruction-free internal structure has no impellers, gears, or throttling elements, fundamentally eliminating jamming and wear, while maintaining extremely low pressure loss.
II. Fully Compliant Materials, Stable High-Precision Metering Under All Operating Conditions
Drinking-water-grade eco-friendly materials with multiple international certifications

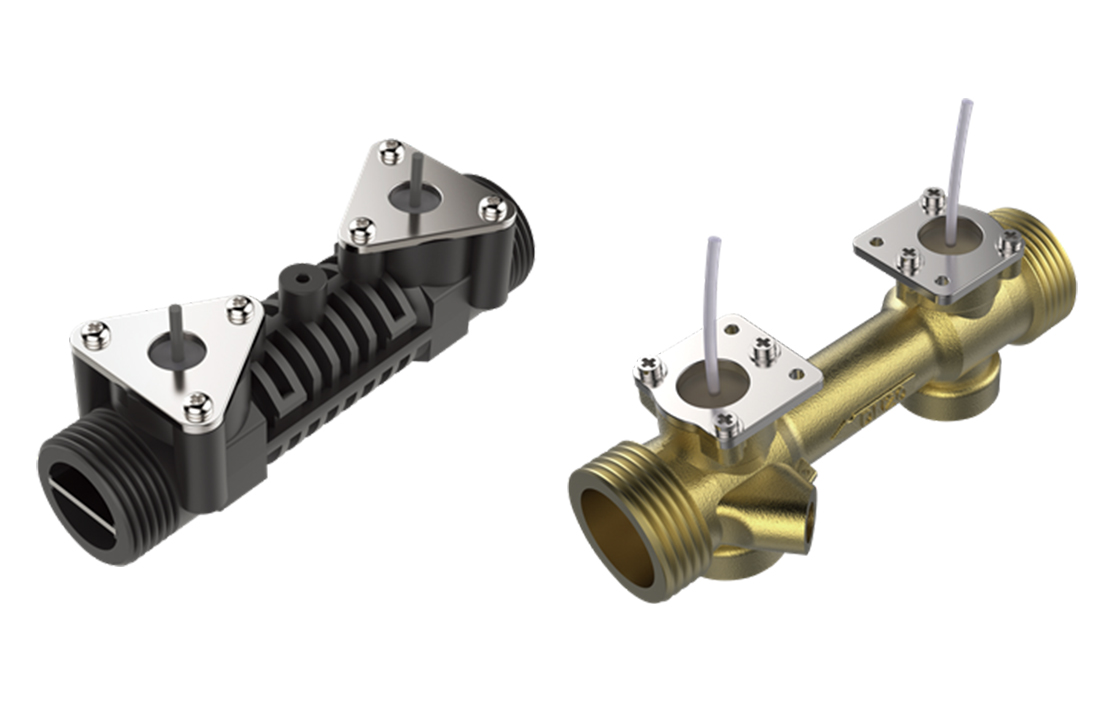

Available in proprietary modified environmentally friendly polymer or high-grade brass, the product has passed WRAS, NSF/ANSI 61, ACS, and other international water-contact safety certifications. It has no heavy metal leaching or harmful substance migration, making it suitable for cold/hot drinking water, heating/cooling media, etc.
Class 1 basic accuracy and stable output over ultra-wide range
The complete unit is calibrated through standardized real-flow testing. When paired with the appropriate electronic module, it can achieve an R250~R500 ultra-wide turndown ratio, maintaining 1% high-precision metering across both low and high flow ranges.
Flexible specification customization

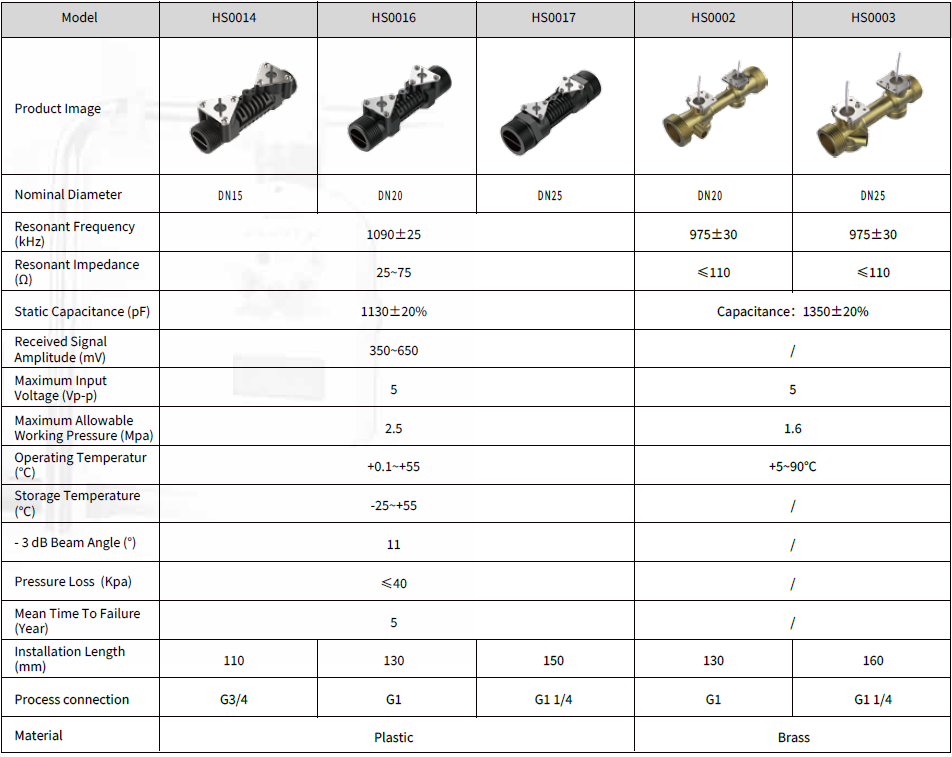

Standard diameters from DN15 to DN25 are available, with adjustable tube length and thread/flange connection types to suit various applications such as residential water meters, building-level district metering, and cold/heat heat meters.
III. Native Digital Interfaces, Acting as a Data Collection Hub for Pipeline Networks
The flow meter body is pre-equipped with integrated ports for digital temperature and pressure sensors. It can directly output raw time-difference ultrasonic signals or pre-processed digital data, simultaneously capturing multi-dimensional parameters including instantaneous flow rate, flow direction, medium temperature, and sound velocity. The high-resolution real-time data can directly support pipeline leak location, district water balance analysis, and regional water demand forecasting, transforming the traditional water meter from a simple consumption-recording tool into a core data acquisition terminal for the intelligent water network.
Multi-Solution Comparison: Ultrasonic Metering Is the Optimal Underlying Solution for Smart Water
Comparison Dimension | Traditional Mechanical Water Meter | Electromagnetic Water Meter | Ultrasonic Flow Solution |
Measurement Principle | Mechanical impeller/piston rotational speed conversion | Faraday’s law of electromagnetic induction; medium must be conductive | Ultrasonic time-difference method; suitable for most clean water media |
Internal Moving Parts | Numerous moving parts such as impellers and gears | No moving parts | Full-bore, no moving parts whatsoever |
Metering Accuracy Performance | Large errors at low flows; significant accuracy drift over long use; turndown ratio only R80~R160 | Overall high accuracy, but conductivity fluctuations in water can cause deviations | Class 1 accuracy; R250~R500 ultra-wide turndown; stable across entire flow range |
Pipeline Pressure Loss | Pressure loss rises sharply when clogged | Low pressure loss (full-bore type) | Extremely low pressure loss; no throttling structure, lower energy consumption for water transmission |
Water Quality Adaptability | Sediment and scale easily jam the mechanism | Bubbles or low-conductivity media cause measurement failure | Tolerates minor bubbles and impurities; built-in anti-scaling structure |
Maintenance Cost (Ongoing) | High; requires regular disassembly, cleaning, and cartridge replacement | Moderate; electrodes are prone to fouling and need periodic cleaning | Nearly maintenance-free; no wearing parts; virtually zero maintenance over the entire lifecycle |
Digital Output Capability | Requires additional pulse/magnetic modules; single-dimensional data | Supports digital output, but overall power consumption is relatively high | Native multi-parameter digital output; supports bidirectional flow monitoring; ultra-low power consumption |
Total Cost of Ownership (TCO) | Low purchase price, but frequent replacements and maintenance drive up overall cost | High procurement and supporting circuit costs | Long service life, maintenance-free, stable metering; outstanding long-term cost advantage |
As the comparison shows, ultrasonic metering combines multiple advantages—high accuracy, maintenance-free operation, low pressure loss, strong water quality adaptability, and native digital capability—making it the premier core solution for next-generation smart water meters and heat meters. AUDIOWELL’s vertically integrated flow meter body fully unleashes the performance of ultrasonic metering technology from its acoustic core components.
Full-Chain Customization Services: More Than a Component Supplier – Your Dedicated Metering Technology Partner
AUDIOWELL offers deep customization services to global water meter manufacturers and smart water system integrators, achieving full-chain self-sufficiency from raw materials to metering algorithms: piezoelectric ceramic raw materials, transducer processing, acoustic matching layers, complete assembly, and DSP flow compensation algorithms are all developed and produced in-house.
Technical customization: Acoustic parameters can be adapted to customers’ existing electronic boards; internal flow channels can be re-simulated and optimized for special media or specific pipeline operating conditions.
Product customization: Standard DN15~DN25 bodies support switching between plastic and brass; connection types and tube lengths can be adjusted as required. We can supply transducer components separately or provide a complete metering core with integrated electronic modules.
Key Application Scenarios

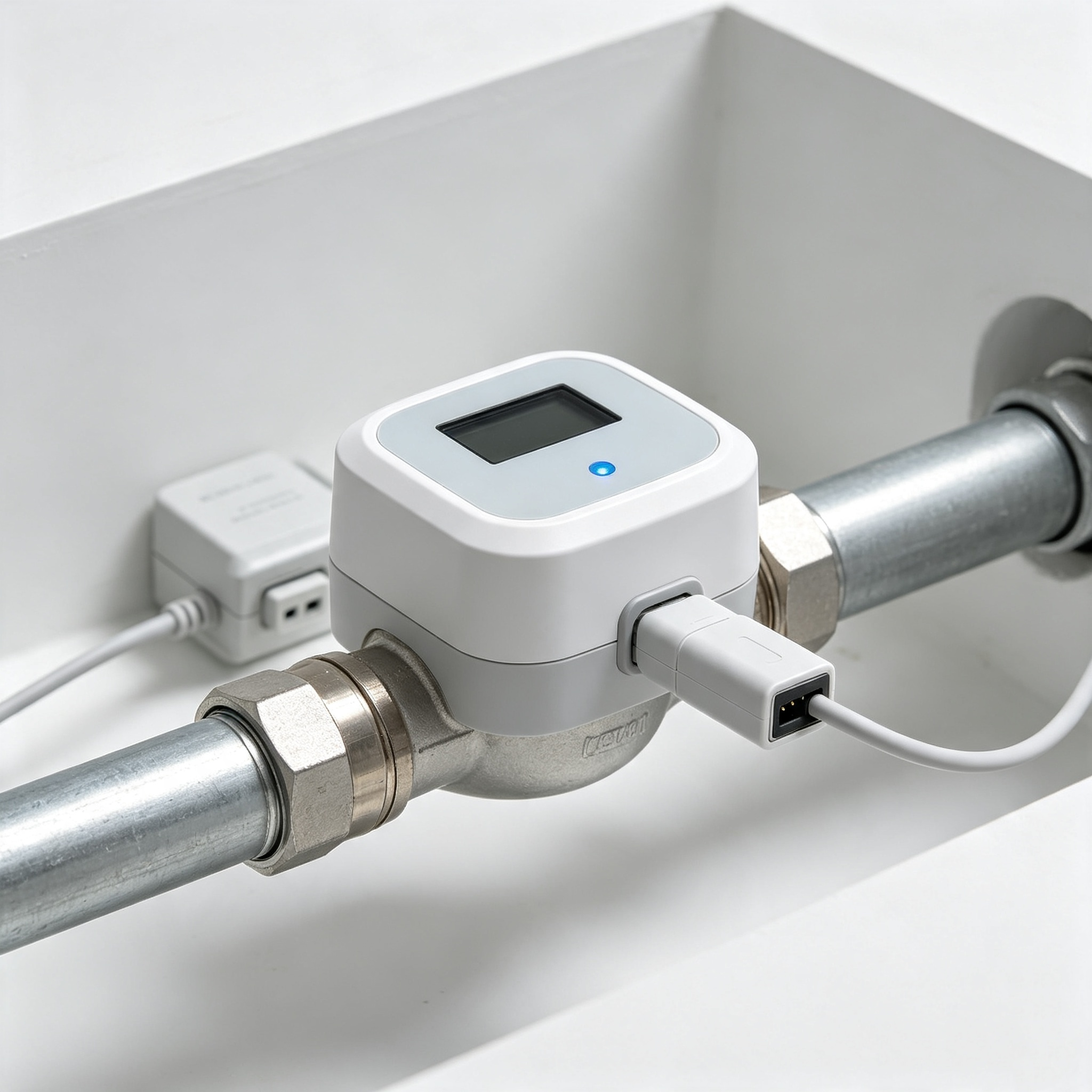

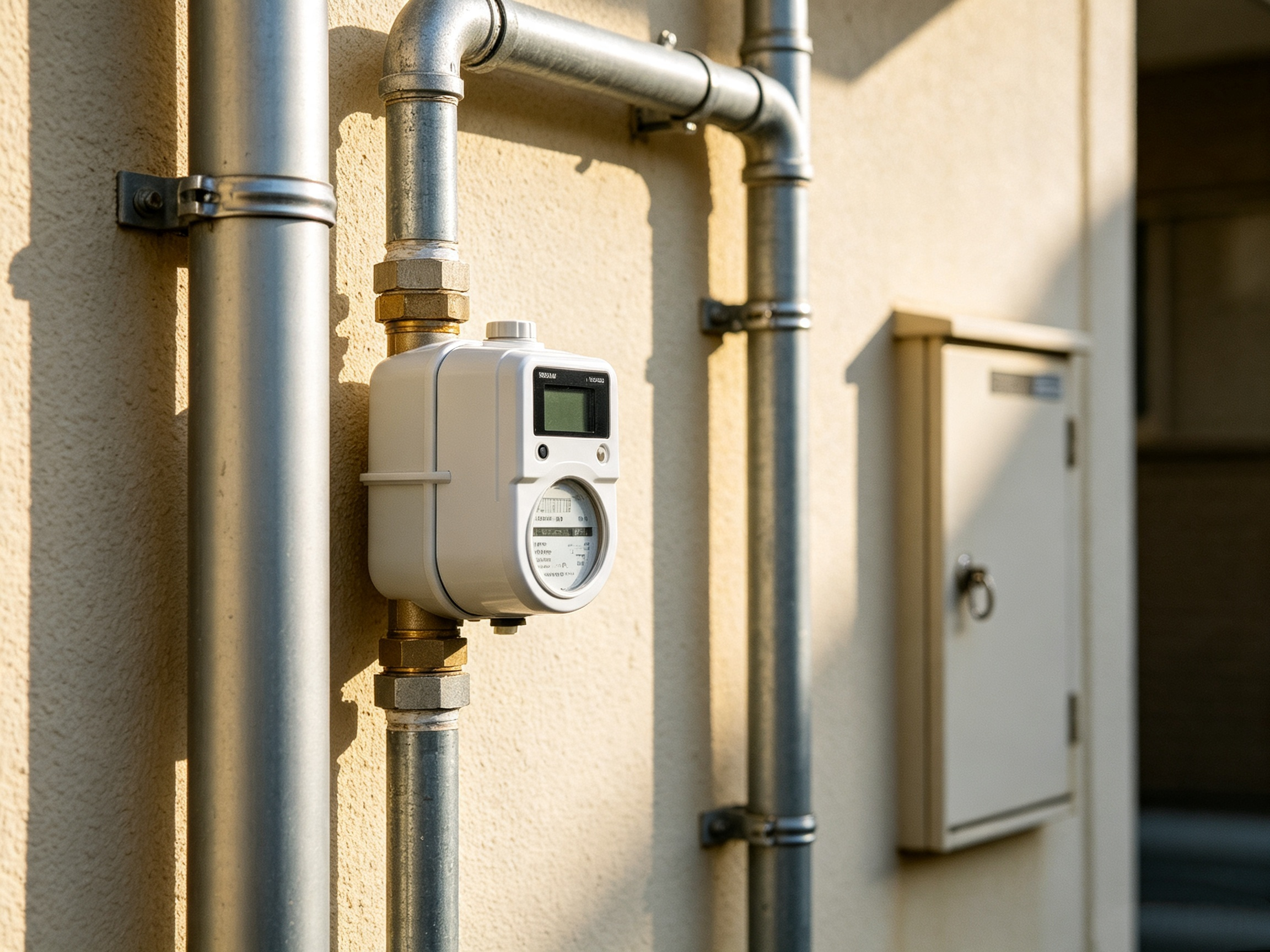

l Core measurement unit for ultrasonic cold/hot water meters in residential buildings and apartment complexes.
l Front-end sensing tube section for district and building-level metering (with support for extended large-diameter customization).
l Flow sensing core for ultrasonic heat meters in heating and cooling systems.
Partner with AUDIOWELL to Achieve Digital Water Cost Reduction and Efficiency Gains Through Precision Metering
Against the backdrop of global water resource management and the digital transformation of water utilities, choosing AUDIOWELL’s ultrasonic flow meter body delivers three core values:
l Accurate and controllable metering: Class 1 stable accuracy plus a no-moving-parts design completely eliminates metering deviations caused by mechanical wear, reducing water loss and billing disputes.
l Worry-free compliance: Water-contact materials carry multiple international safety certifications, facilitating smooth approval for water projects in various countries.
l Accelerated project deployment: Full-stack in-house customization shortens customers’ new product development cycles; the ultra-long maintenance-free lifespan significantly reduces lifecycle operating costs.
Safeguard every drop of water with precision ultrasonic metering, and build an efficient, transparent, and sustainable intelligent water network through fundamental technological innovation.
