Current position : Home > Products > Sensors > Dust Sensor
Cate
DL0001

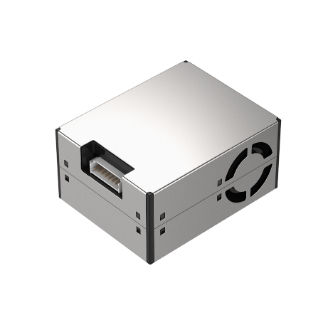

Dust Sensor

The Laser Dust Sensor is used to measure the concentration of suspended particles in the air with different sizes (including PM2 5). It uses a laser diode as the light source to illuminate the sampling air boosted by the blower. When the small particles in the air enter the illuminated area, the laser beam is scattered. The scattered light is received by a photodetector and converted into current signal which is amplified and processed then to indicate the concentration of particles. A built-in microprocessor converts it into mass concentration (μg m3) and outputs the signal via universal digital interface.
Request a sample
Features

-High sensitivity

-Excellent consistency

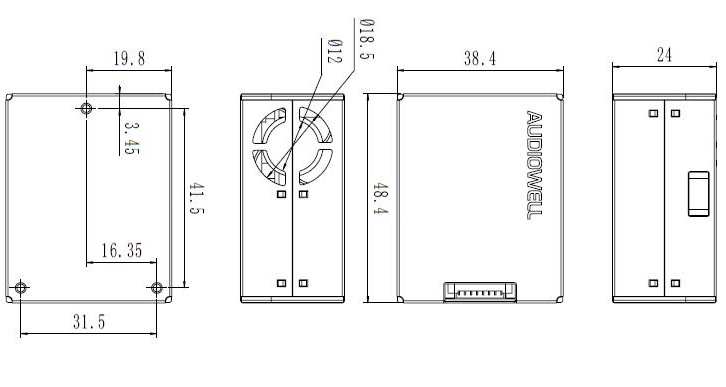

Dimensions

Specifications
ItemMIN
Measuring range of particles0.3~10μm
Effective range of particle

mass concentration

0~500μg/m3
Maximum range of particle

mass concentration

2000μg/m3

Consistency

0 ~ 100 μg/m³: ± 10 μg/m³

100 ~ 500 μg/m³: ± 10 %

DC power supply voltage5.0V
Working current≤100mA
Working temperature-10°C~+50°C
Working humidity range35~85%
Mean time to failure≥3 years
Maximum size50×40×25mm
