DW0002

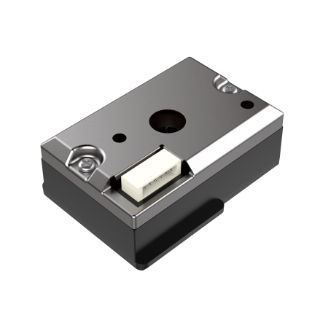

Dust Sensor

DW0002-001 is the second generation of dust sensors for detecting particulate matter in air based on light scattering. The sensor incorporates two stable source modules, and each sensor is rigorously calibrated and tested before leaving the factory. It has good stability, high precision and good consistency. The sensor has both UART and PWM communication modes, which directly outputs the mass concentration data of the particulate matter.
Request a sample
Features

-High sensitivity

-Excellent consistency

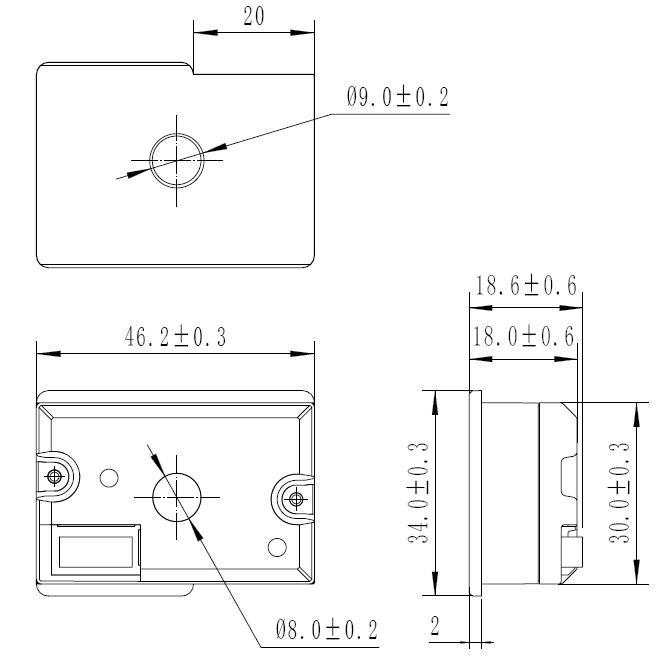

Dimensions
Specifications
ItemSpecifications
Detectable Partical Diameter1.0~10μm
Maximum range of particle mass concentration800 μg/m3
Effective range of particle mass concentration0~500 μg/m3
Consistency0 ~ 100 μg/m3 :±20
100 ~ 500 μg/m3:±20%
DC power supply voltage5.0 ± 0.3V
Working current≤15mA

Working temperature

-10~+60℃
Working humidity range0~95 RH%
Communication methodUART/ PWM
Life time≥5 years
Size46*34*17.7mm
