TC0096-037

Enclose Ultrasonic Sensor

The ultrasonic transducer utilizes piezoelectric effect to convert electricity to mechanical vibration and form ultrasonic waves. Therefore no coil is contained and electromagnetic interference can be greatly reduced. The ultrasonic wave has excellent directivity and strong penetrability, and is interfered by neither the dust and electromagnetic fields in the air, nor the color and temperature at object surfaces.
Request a sample
Features

- Low power consumption

- High reliability

- Excellent waterproof performance and weatherability

Applications

- Reversing detection

- Assisted parking system

- Blind spot information system

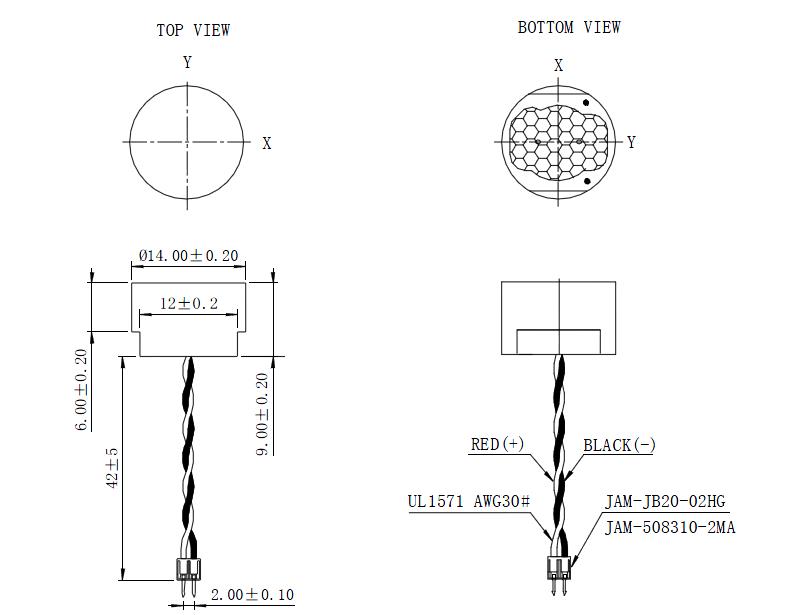

Dimensions
Specifications
Item
Specification
Resonant frequency48±1.0KHz
Sensitivity3.0±1.0Vp-p
Decay time≤1.80ms
Directivity(deg) X-axis100±15°
Directivity(deg) Y-axis50±10°
Capacitance1800±15%pF
Max.Input Volt140Vp-p
Mean time to failure

50000hs

Operating temperature-40℃ ~+85℃
