HT0013|Ultrasonic Gas Flow Sensor

Ultrasonic Gas Flow TransducerModel：HT0013

The gas flow sensor is the core component of ultrasonic gas meter, which is a kind of ultrasonic sensor wiht gas medium. This gas flow sensor has utilized novel acoustic matching material to enhance the transmission ability of ultrasonic signal in gas medium.

Request a sample

Features

- Independent research and development, international advanceded material

- Stable and reliable

- Good consistency

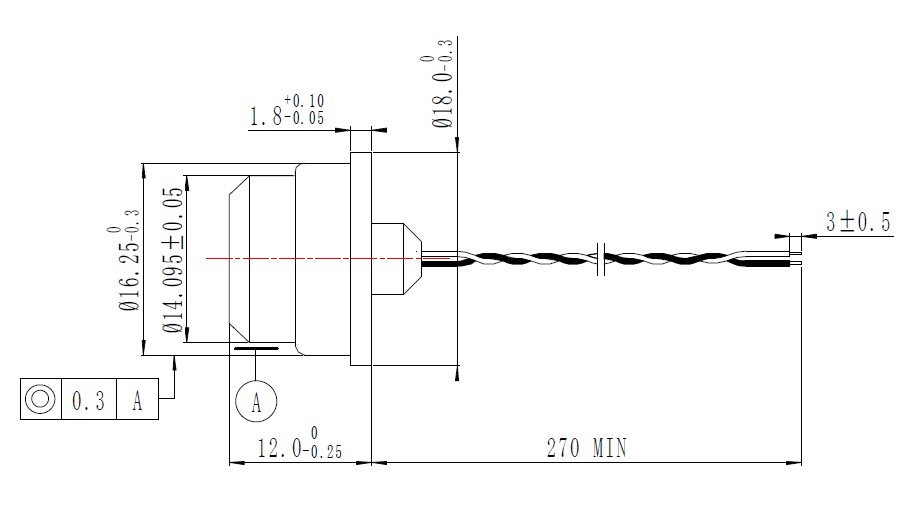

Dimensions

Specifications

Item	Specifications
Resonant frequency	200±15 KHz
Overall Sensitivity	≥800
Specific value (V3/V5)	1：1～1：2
Capacitance	2000±15%pF
Impedance	300±150Ω
Operating Humidity	15～90%RH
Operating temperature	-25℃～+55℃
Pressure Resistance	0.2Mpa
IP level	IP65
