Current position : Home > Products > Sensors > Ultrasonic Flow Transducer
Cate
US0072

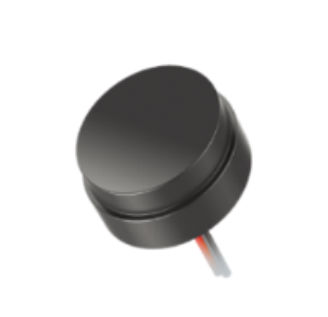

Ultrasonic Flow Transducer

Ultrasonic flow sensor is used as the core element of ultrasonic flow meters. Ultrasonic flow measurement uses the transit time principle, whereby opposite sending and receiving ultrasonic flow sensors are used to transmit signals through the flow. The signal travels faster when moving with the flow stream rather than against the flow stream. The difference between the two transit times is used to calculate the flow rate.
Request a sample
Features

- High sensitivity, stability and reliability

- High and low temperature resistance, moisture resistance, impact and shock resistance.

- Good consistency.

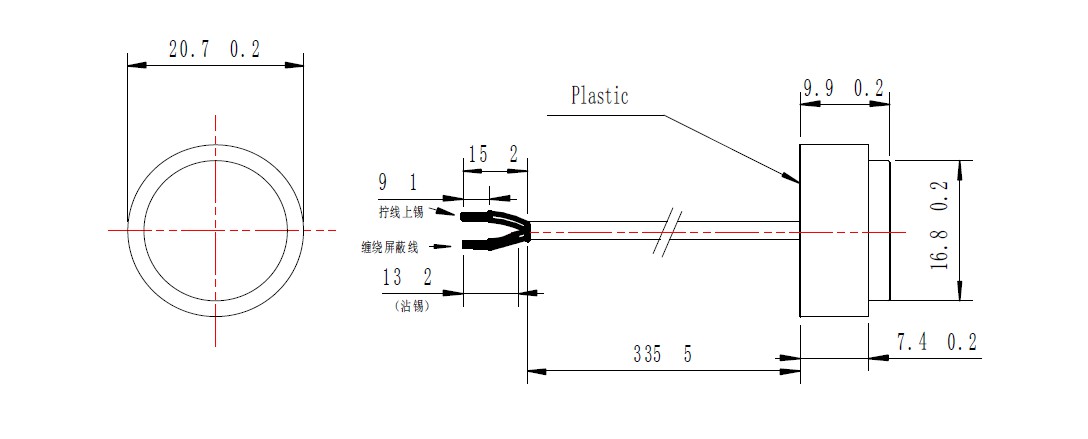

Dimensions
ultrasonic flow sensor AUDIOWELL.jpg
Specifications

ItemSpecifications
Resonant frequency1090±20 KHz
Resonant impedance25~75Ω
Free capacitance1130±20%pF
Receiving Signal
450~650mV
Max. working water pressure
5Vp-p
Max. working water pressure2.5Mpa
Operating temperature0~+90℃

Applications
