Current position : Home > Products > Sensors > Ultrasonic Flow Transducer
Cate
US0080

Ultrasonic Flow Transducer

Ultrasonic flow sensor is used as the core element of ultrasonic flow meters. Ultrasonic flow measurement uses the transit time principle, whereby opposite sending and receiving ultrasonic flow sensors are used to transmit signals through the flow. The signal travels faster when moving with the flow stream rather than against the flow stream. The difference between the two transit times is used to calculate the flow rate.
Request a sample
Features

- High sensitivity, stability and reliability

- High and low temperature resistance, moisture resistance, impact and shock resistance.

- Good consistency.

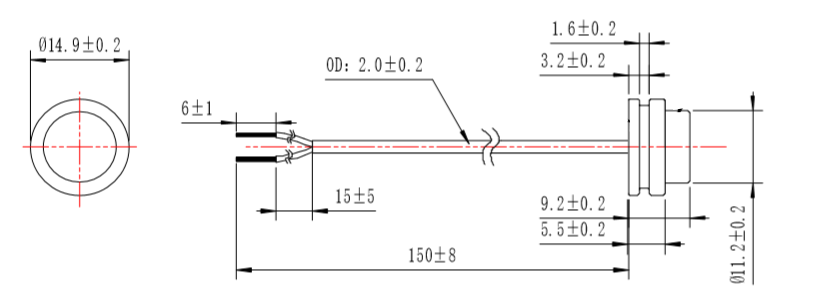

Dimensions
Specifications

ItemSpecifications
Resonant frequency965±30 KHz
Resonant impedance170±70 Ω
Free capacitance650±20%pF
Receiving Signal
350±100mV
Allowable max. input voltage:5Vp-p
Max. working water pressure2.5Mpa

Applications
