HB101|AUDIOWELL MEMS Ultrasonic Sensor‌

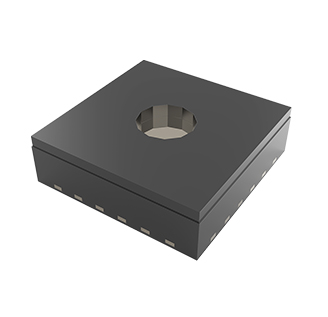

MEMS Ultrasonic Sensor‌Model：HB101

MEMS ultrasonic sensor is a new type of sensor that combines microelectromechanical system (MEMS) technology with ultrasonic technology. It uses micro-machining processes to convert electrical energy into acoustic energy and vice versa, offering features such as miniaturisation and low power consumption. This makes it a flexible solution for both consumer electronics and industrial applications.

Request a sample

Products info

The MEMS ultrasonic sensor with a 65 kHz resonance frequency achieves a balance between penetration and accuracy in complex industrial environments (wavelength in air approximately 5.2 mm).

Features

- Ultra-compact size: Volume approximately 20mm³

- Convenient for integration into various scenarios: Surface-mountable, no separate installation required

- FOV up to 180°, single chip achieves full-scene coverage

- Low-voltage drive: Achieves 110dB high sound pressure level at 10Vop low drive voltage
- Mature manufacturing process: Based on semiconductor mass production high-precision micro-nano fabrication and packaging processes

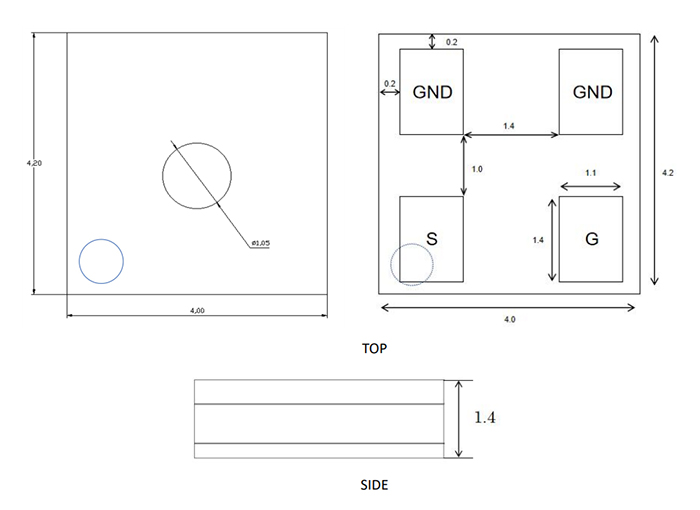

Dimensions(mm)

Specifications

Item	Specifications
Resonant frequency	65± 3.0 kHz
FOV	180°
Operating voltage	3~30Vop
Capacitance	3.3± 3nF
Operating temperature	-20°C~+70℃
Storage temperature	-40℃~+80℃

Applications

- Pallet depth detection for autonomous forklifts

- Collision prevention for aerial work platforms

- Detection for autonomous cleaning vehicles/gates

- Height monitoring for agricultural spray booms
